Delay Generator

A delay generator is one of the key elements in experimental physics as it synchronizes different events of an experiment. Our lineup of delay generators ranges from small three channel ISA-Bus cards to larger six channel PCI-Bus cards. For remote control of the delay generator it can be built into a small Box-PC to be controlled either by our delay-program, ASCII commands or EPICS.

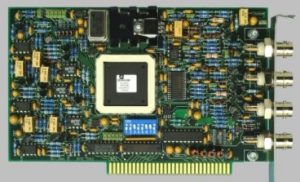

BME_G02

  • 3 Delays (BNC Output)
  • Delay-Resolution = 25ps
  • 44Bit Delayrange (max Delay = 429s)
  • Edge or Gate Output
  • Master/Slave Option if more than 3 Outputs are needed
  • high Load Option
  • external/internal Trigger
  • external/internal Clock

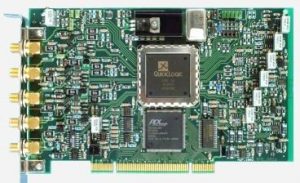

BME_G02p

  • 3 Delays (SMA Output)
  • Delay-Resolution = 25ps
  • 44Bit Delayrange (max Delay = 429s)
  • very low jitter
  • Repetion Rate 8MHz
  • Edge, Gate or Pulse Output
  • Master/Slave Option if more than 3 Outputs are needed
  • several Output voltage levels
  • high Load Option
  • external/internal Trigger
  • external/internal Clock

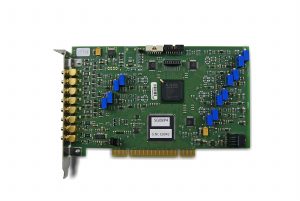

BME_SG08p

  • 6 Delays (SMB Output)
  • Delay-Resolution = 25ps
  • 44Bit Delayrange (max Delay = 429s)
  • very low jitter
  • Repetion Rate 15MHz
  • Gate or Pulse Output
  • Master/Slave Option if more than 6 Outputs are needed
  • external/internal Trigger
  • external/internal Clock
  • Burst Mode
  • Synchronous Time List for Delay Counters
