Trumpf Legacy Systems

We supplied Pockels cell Drivers and Powersupplies to TRUMPF for various types of Lasers, such as the TruMicro or the HPSM used in the EUV (XUV) drive laser

If you have a faulty system, please contact us for repair / replacement.

Specification of the used Systems

Name Material Reprate Rise/fall Voltage
dpp2b4 BBO 800kHz 8nsec 2kV

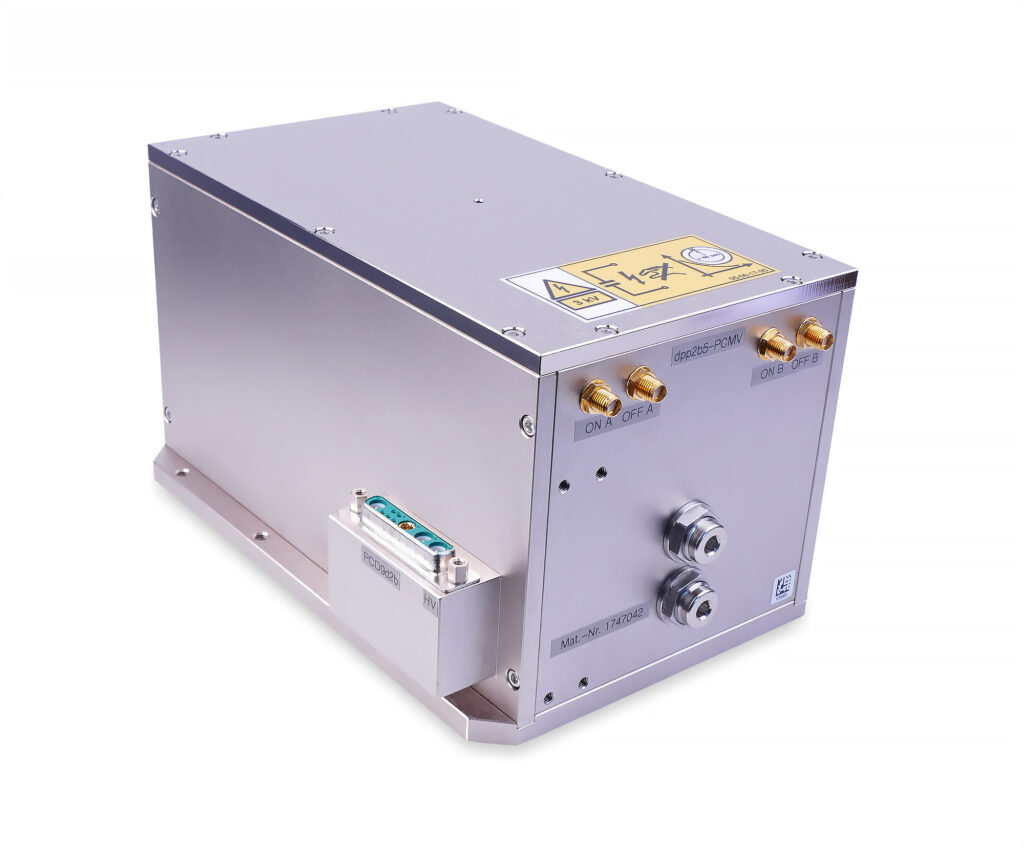

dpp2b5 BBO 1MHz 5nsec 2kV

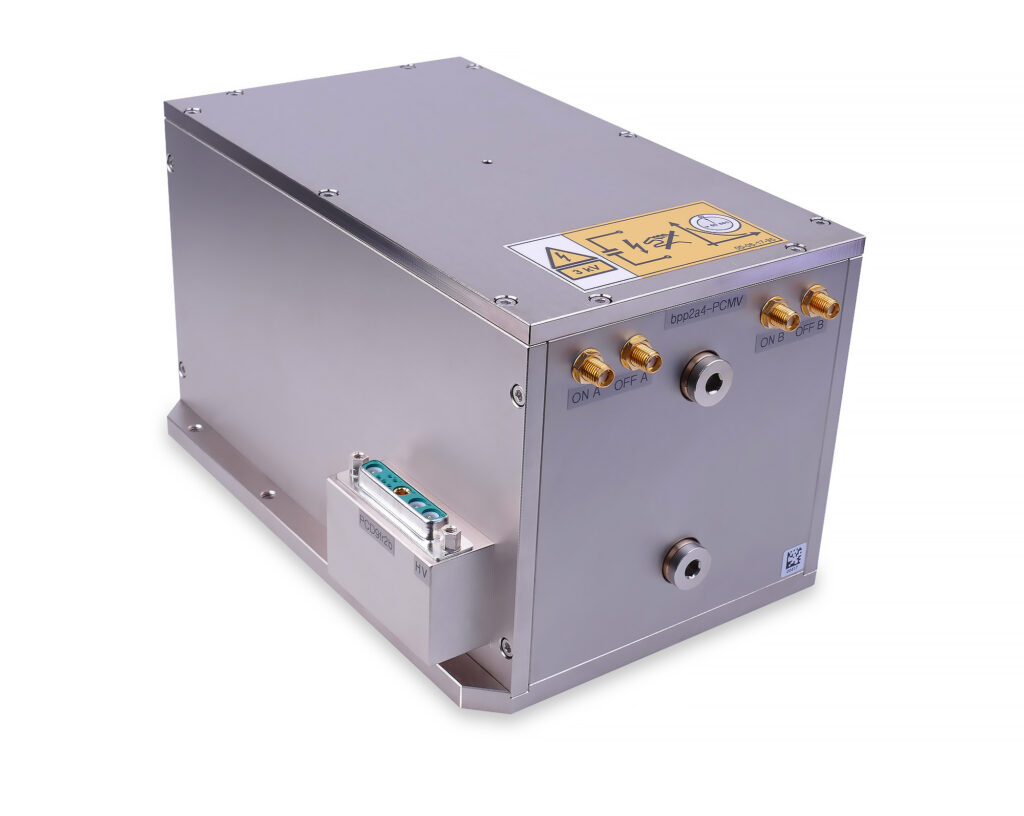

bpp2a4 BBO 1MHz 9nsec 4kV

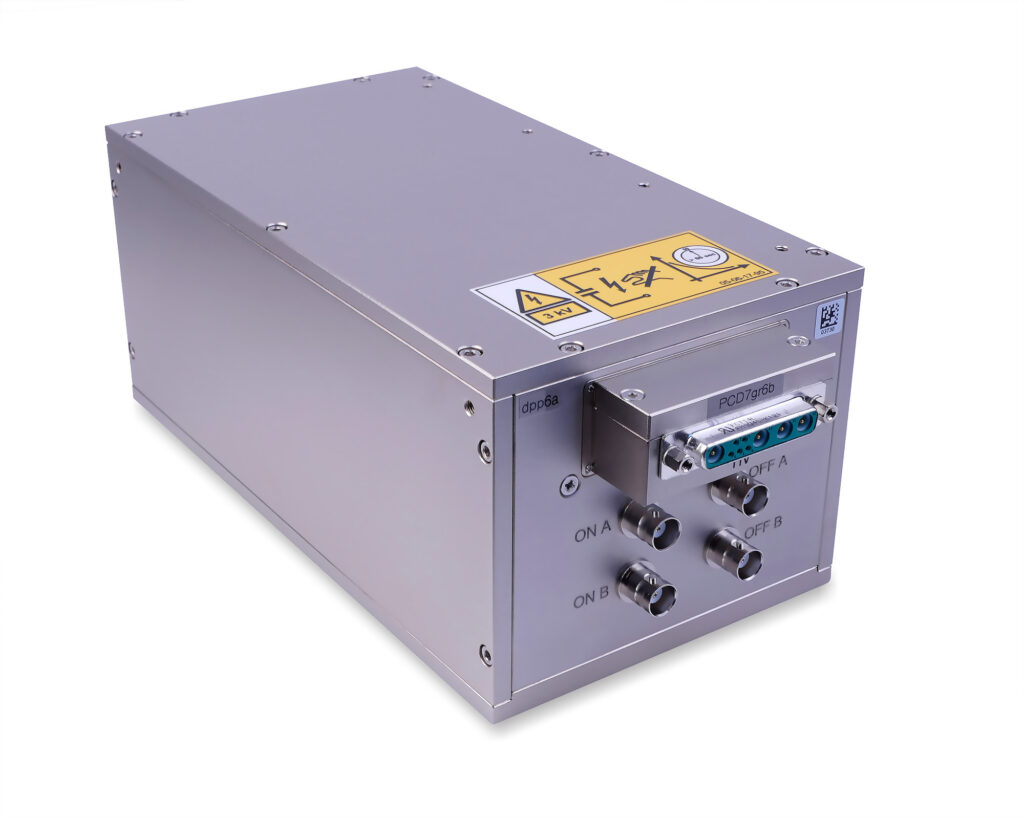

dpp6a BBO 180kHz 8nsec 4.5kV

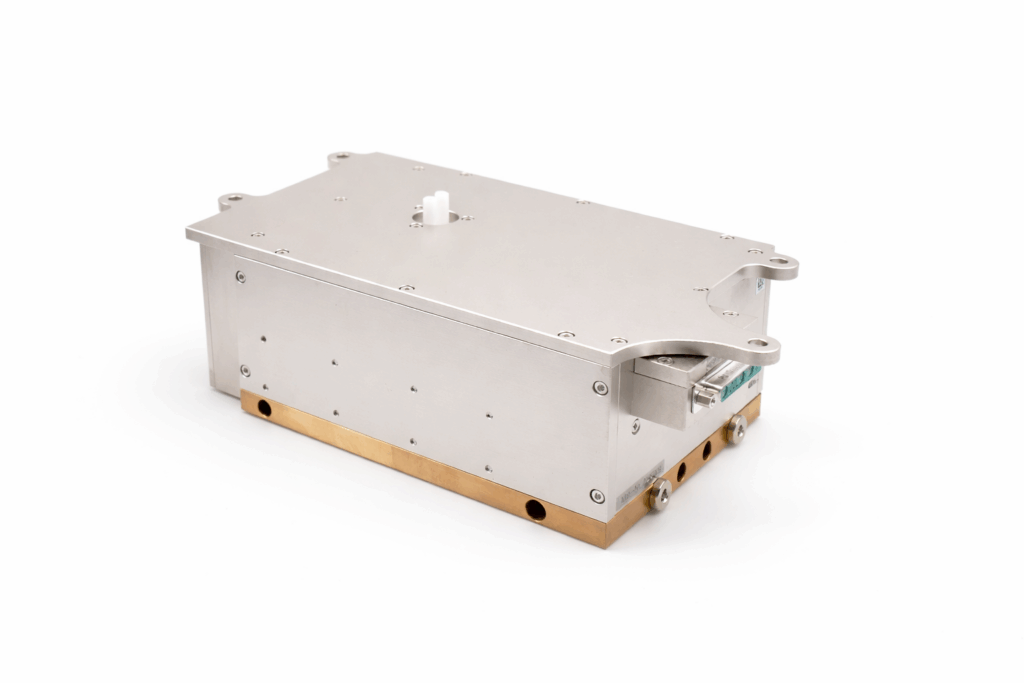

bpp3.4e7c CdTe 100kHz 8nsec 6.0kV

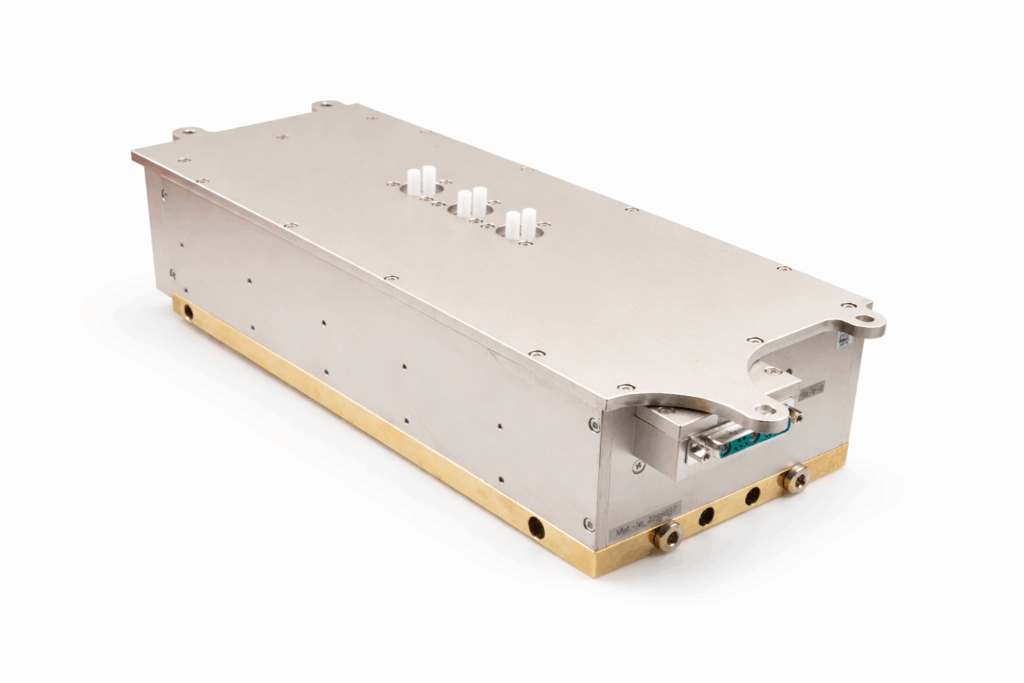

bpp3.4e7e CdTe 100kHz 8nsec 6.0kV
