BBPC4

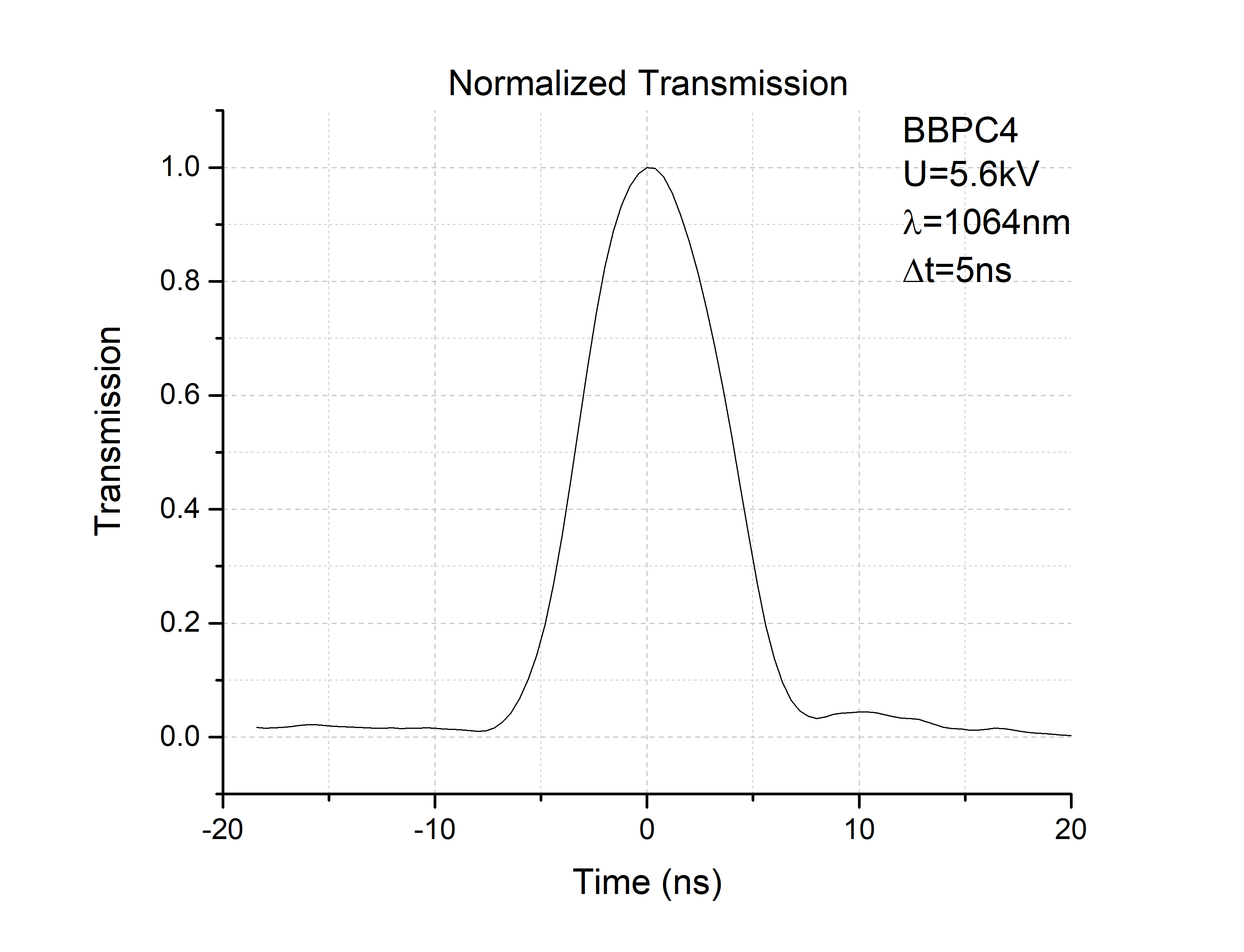

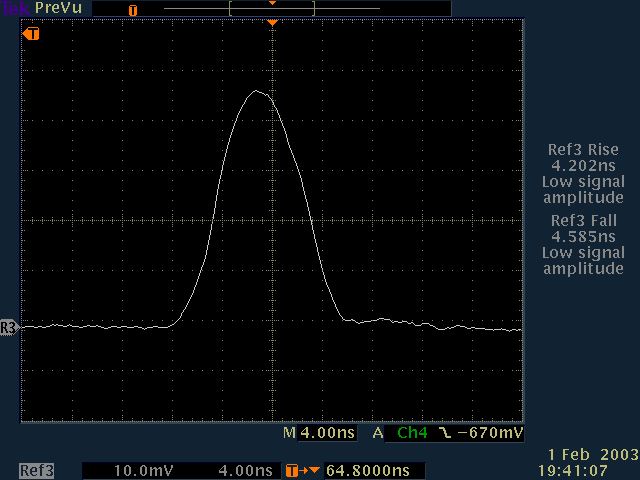

This oscilloscope trace shows the measurement of the optical transmission in a double-pass setup
measured with a photodiode of risetime 1nsec.
Parameters: 1064nm, 5.6kV, time difference of On/Off triggers 5nsec.

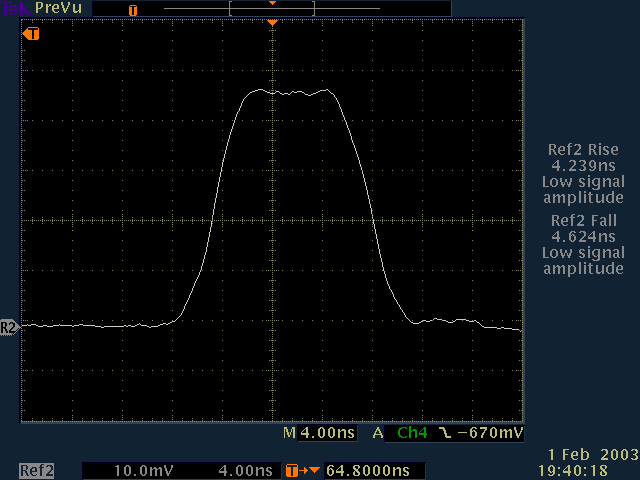

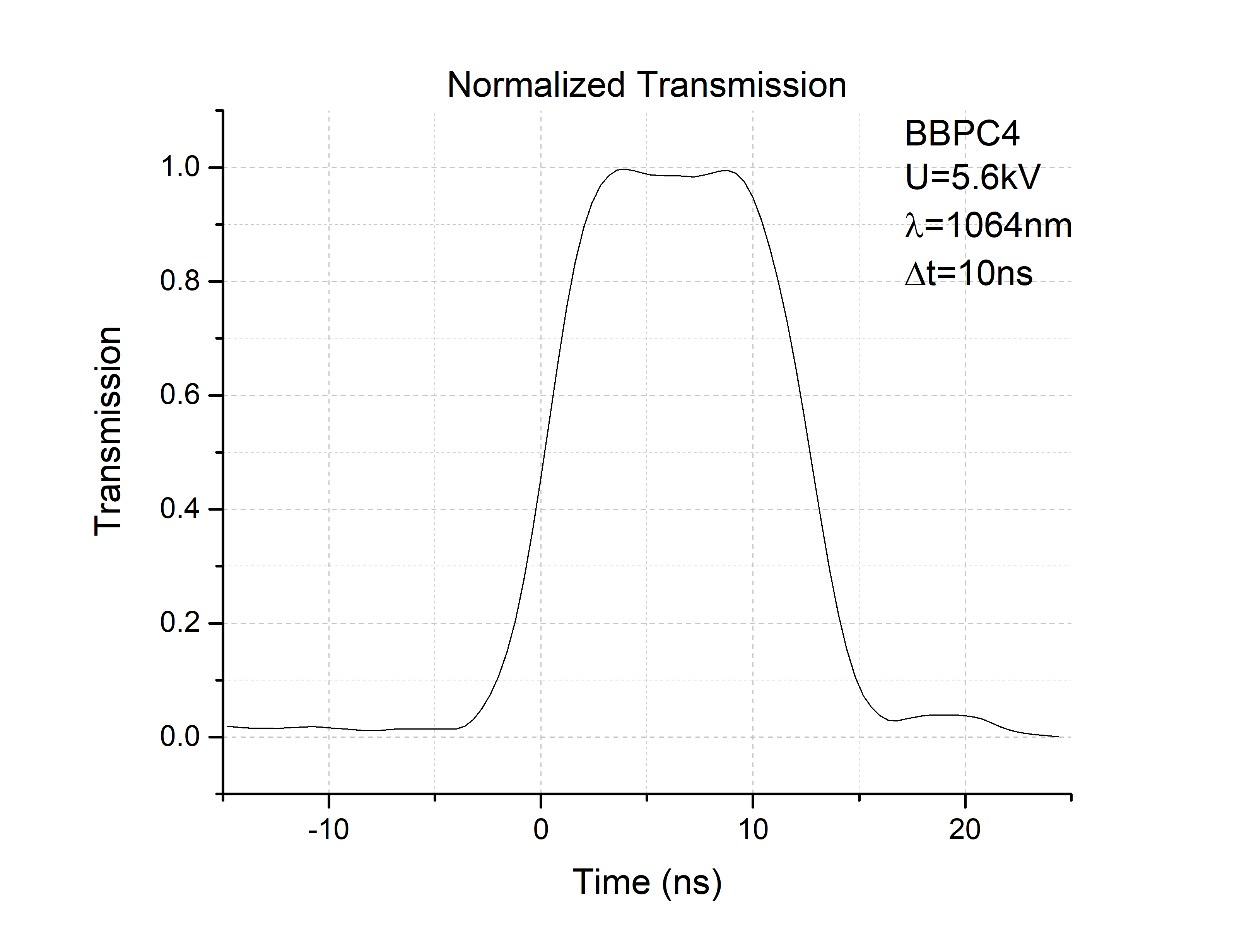

This oscilloscope trace shows the measurement of the optical transmission in a double-pass setup
measured with a photodiode of risetime 1nsec.
Parameters: 1064nm, 5.6kV, time difference of On/Off triggers 10nsec.
