Different drivers have been built for this Pockels cell. This driver is used for slicing pulses with
a very fast risetime of 1.5nsec. Repetition rate is 100kHz.

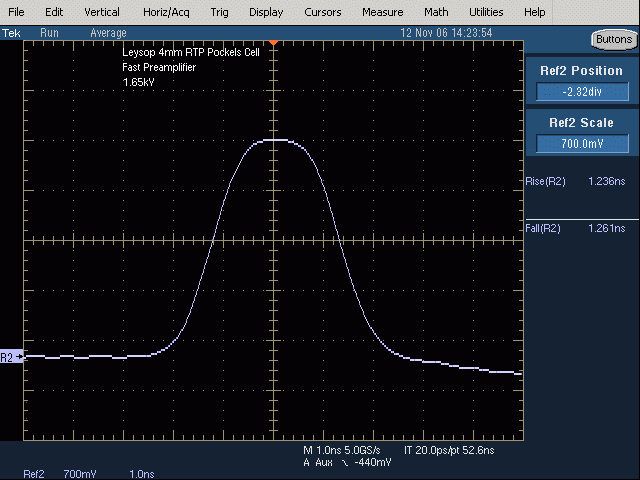

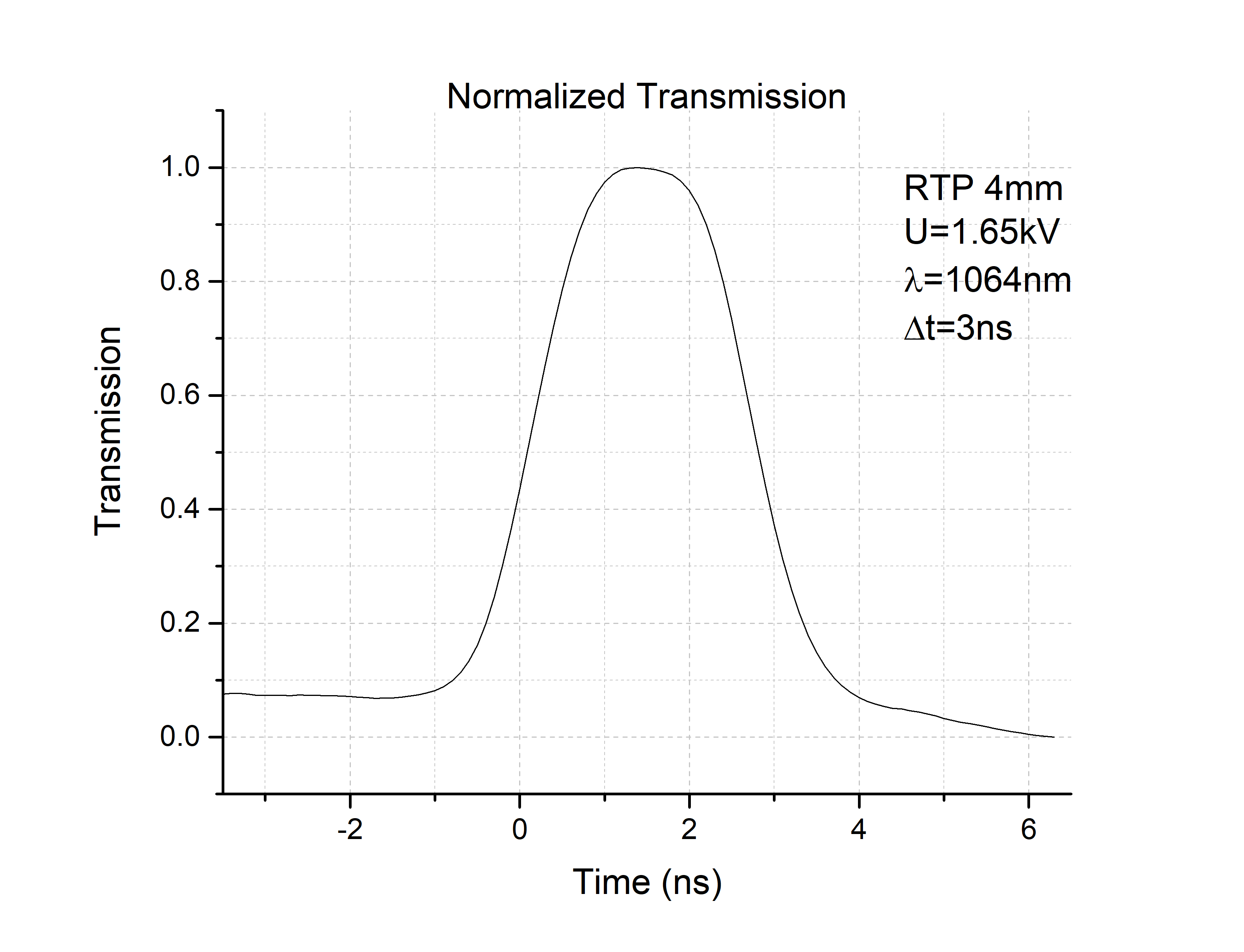

This oscilloscope trace below shows the measurement of the optical transmission in a single-pass setup
measured with a photodiode of risetime 0.5nsec.
Parameters: 1064nm, 1.65kV, time difference of On/Off triggers 2.4nsec.

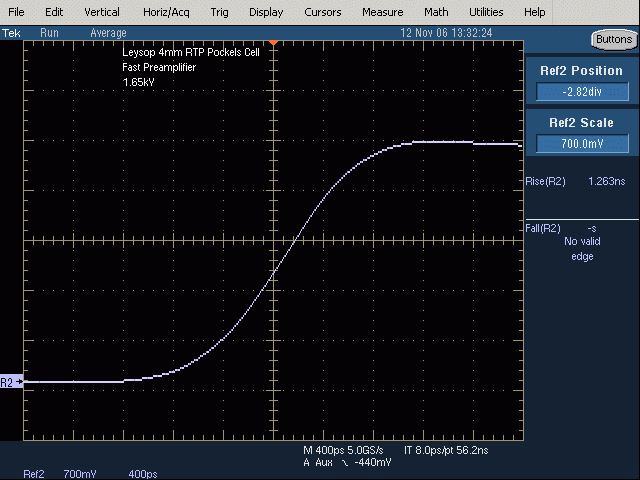

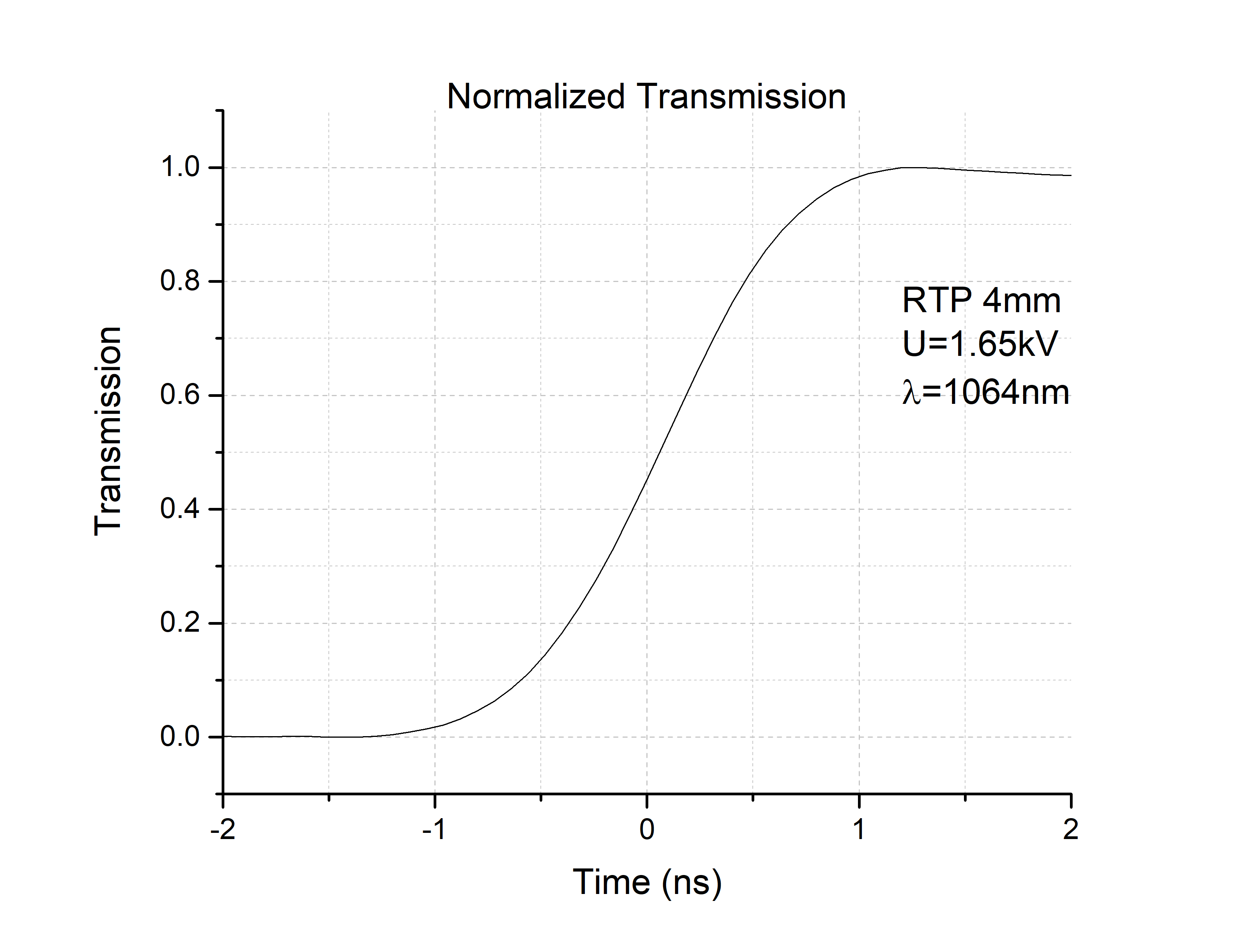

The oscilloscope trace below shows a high resolution measurement of the rising edge in a single-pass setup.
Parameters: 1064nm, 1.65kV, time difference of On/Off triggers 20nsec.

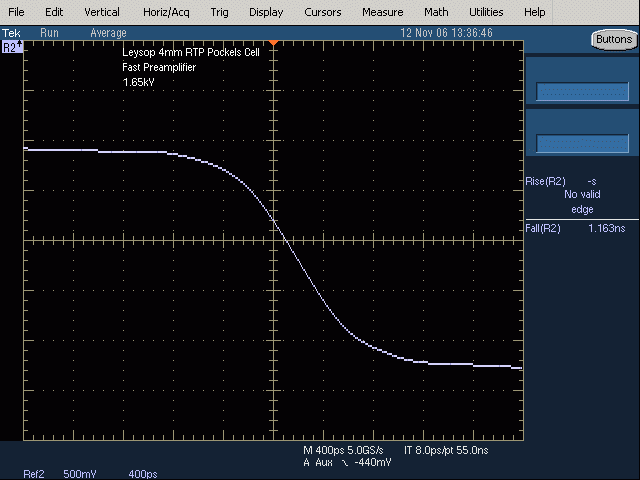

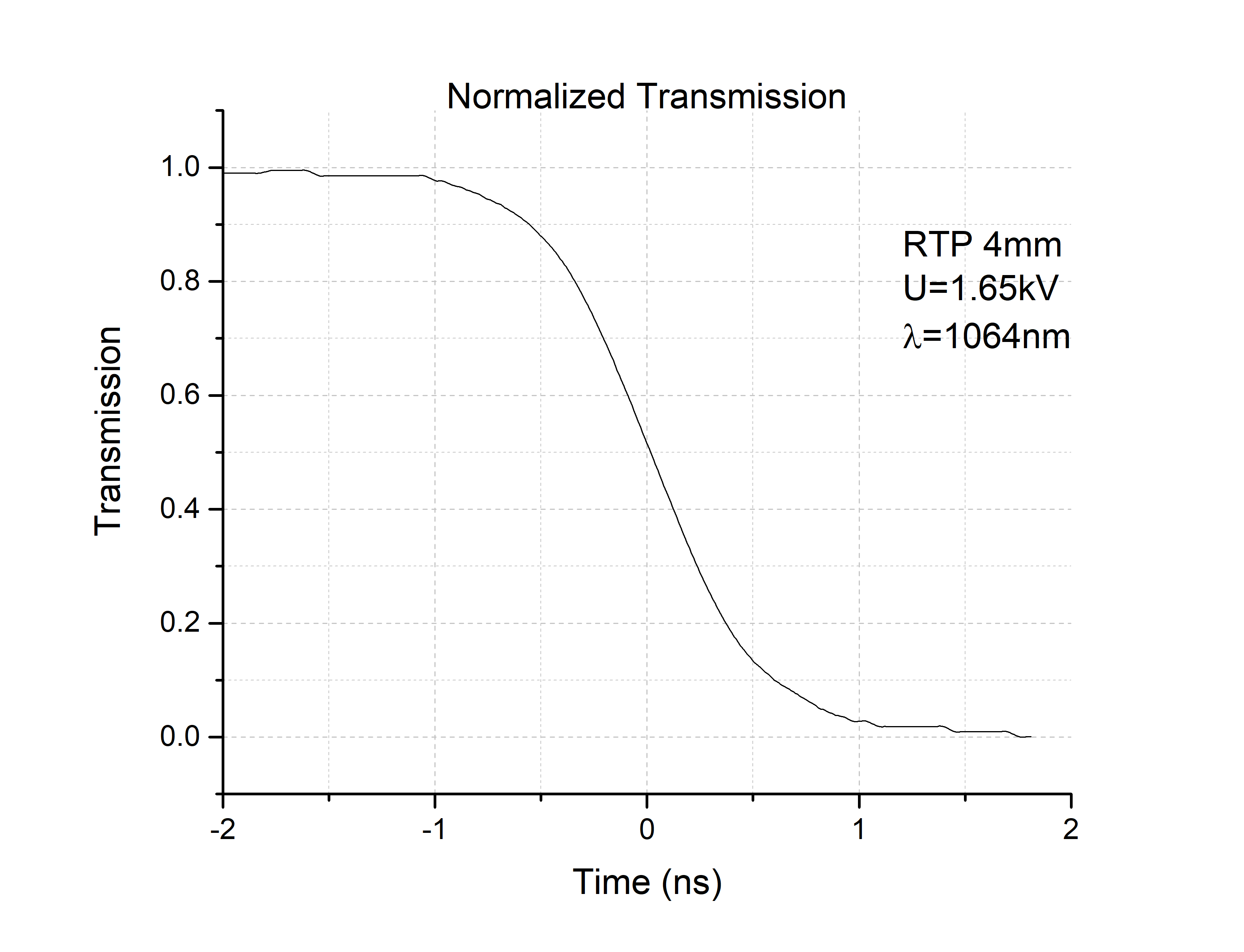

The oscilloscope trace below shows a high resolution measurement of the falling edge in a single-pass setup.
Parameters: 1064nm, 1.65kV, time difference of On/Off triggers 20nsec.
