Lightgate 4

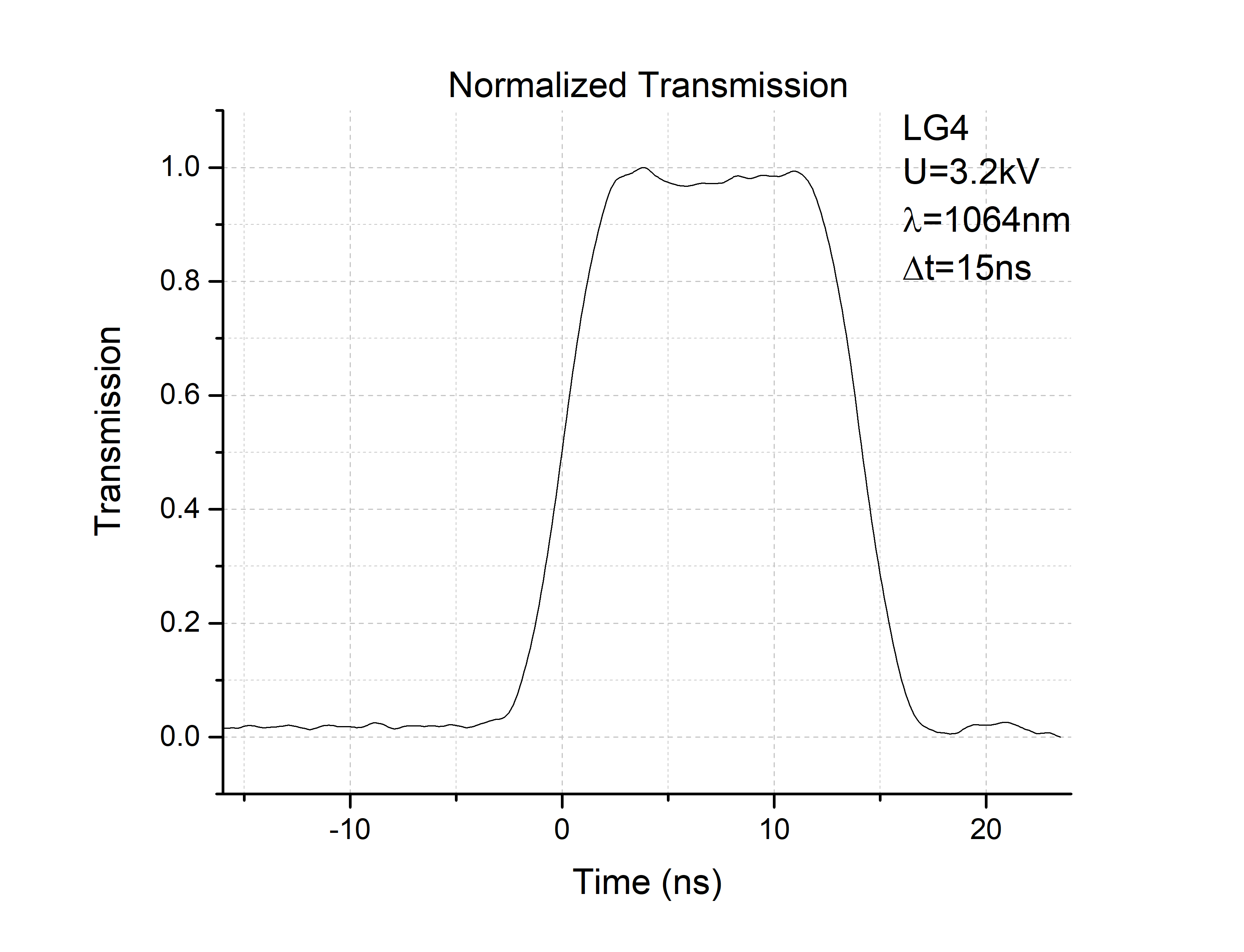

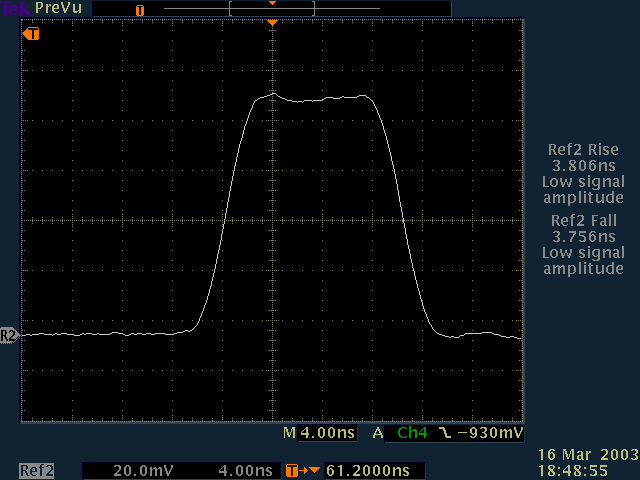

This oscilloscope trace shows the measurement of the optical transmission in a double-pass setup
measured with a photodiode of risetime 1nsec.
Parameters: 1064nm, 3.2kV, time difference of On/Off triggers 15nsec.

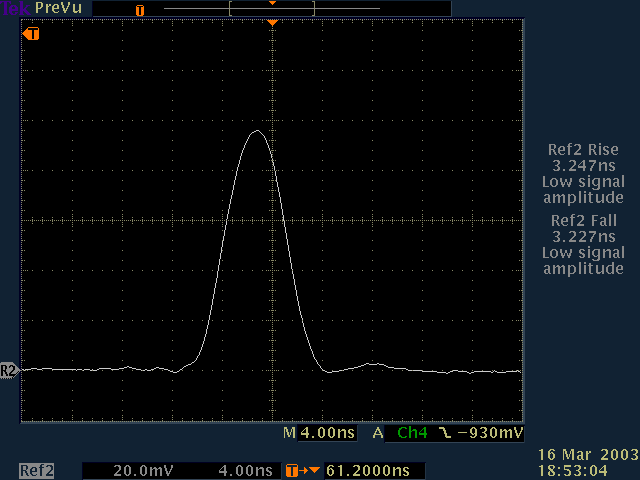

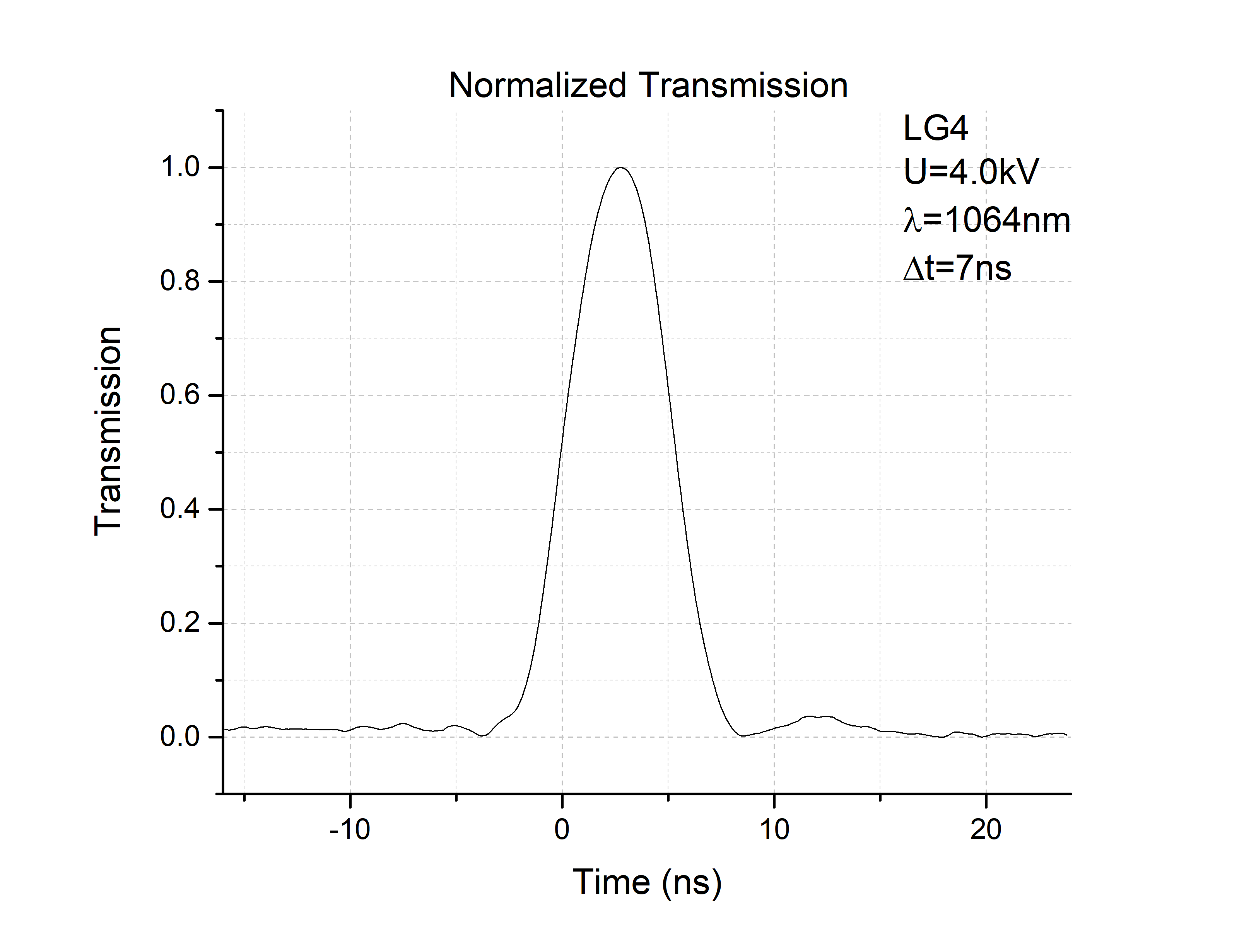

This oscilloscope trace shows the measurement of the optical transmission in a double-pass setup
measured with a photodiode of risetime 1nsec. In order to reduce rise and fall times,the time
difference between the On/Off triggers was reduced, at the same time increasing the drive voltage
to the cell.
Parameters: 1064nm, 4.0kV, time difference of On/Off triggers 7nsec.
