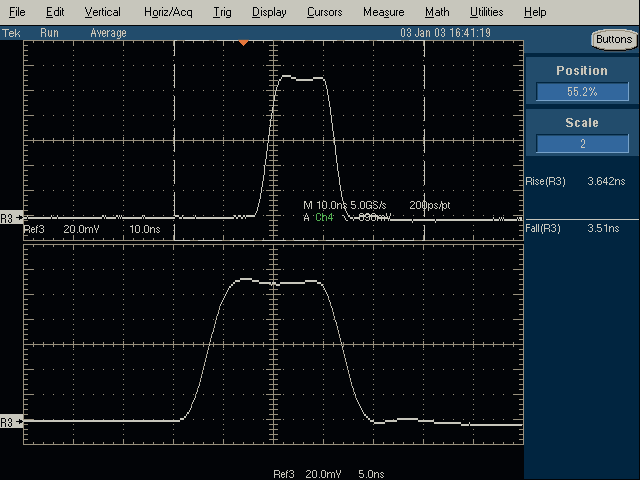

This oscilloscope trace shows the measurement of the optical transmission in a single-pass setup
measured with a photodiode of risetime 1nsec.
Parameters: 1064nm, 1.6kV, time difference of On/Off triggers 15nsec.

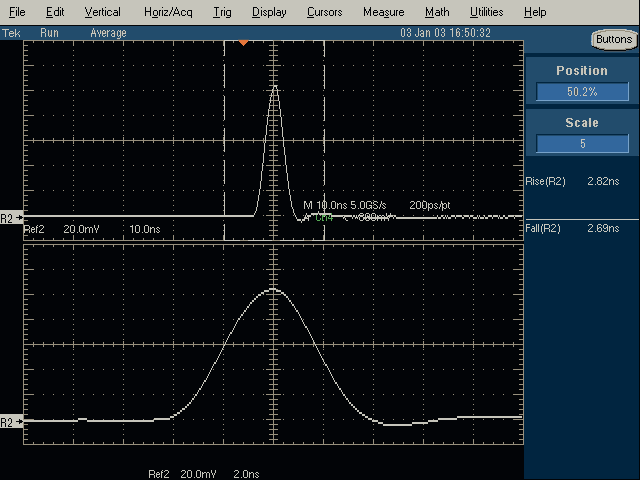

This oscilloscope trace shows the measurement of the optical transmission in a single-pass setup
measured with a photodiode of risetime 1nsec. In order to reduce rise and fall times, the time
difference between the On/Off triggers was reduced, at the same time increasing the drive voltage
to the cell.
Parameters: 1064nm, 2.3kV, time difference of On/Off triggers 4.5nsec.
